Items
Templates
- Input Field
- Button
- Checkbox
- Choice Group
- Text
How to change the template?
Feel free to draft using the Default Item template; you can change it afterward, Item → Change Template.
Options

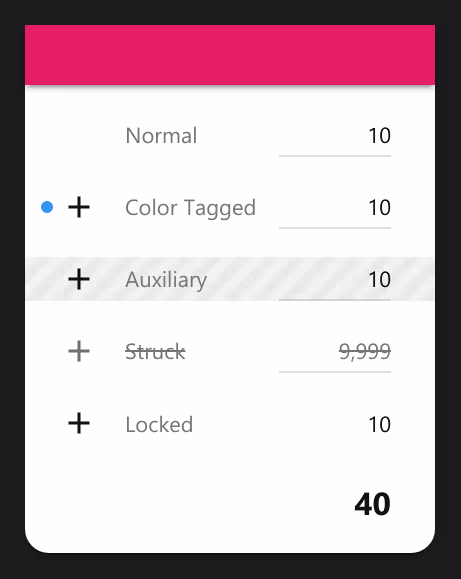

Items can have the following settings (they can be combined).
Auxiliary
An item flagged as "Auxiliary" is like a comment, in the sense that it’s not meant to be shown in your final app.
Tip Auxiliary Items can be hidden in the Drafter Workspace too, View → Hidable Items.
Read Only
Locks an Item. This setting has no effect in Drafter, it’s just for spec’ing out for AI.
Strikethrough
Besides the different style, Formulas ignore struck Items.
How to Insert Items?
Option 1: Drop an Item Template into a Group.
Option 2: Click an Item Template. If an Item is selected, it creates one after it. Otherwise, at the end of the selected Group.
Option 3: Ctrl ⌘ i (works like option 2).
Option 4: Drop a Connection into an empty Group region.
